D1787 Series

SMT Power Inductor for Texas Instruments LM5115DC

RoHS 준수
D1787 Series high-current, high-inductance power inductors feature a flat-wire construction, resulting in exceptionally low DC resistance. They come in a wide range of sizes and inductance values for POL, VRM, VRD, and other high power applications.
  • Developed for Texas Instruments LM5115DC Post Regulator Controller
  • Core shape allows excellent heat dissipation.
  • Rugged flat wire construction
  • Exceptionally low DC resistance
  • Ferrite core for flat L vs. I characteristics
  • Magnetically shielded to minimize EMI
지금 구매:
개수 단품 가격
1 $4.14
250 $3.55
500 $3.09
1000 $2.40
2500 $2.06
5000 $1.90

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 인덕턴스 (µH) 1
(허용 오차: ±20%)
DCR max (mΩ) 2 SRF typ (MHz) 3 Irms (A) 4
D1787-AL 33 2.8 9.0 23.0
메모
  1. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using a Coilcraft SMD-D fixture in an Agilent/HP 4263B impedance analyzer or equivalent.
  2. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator.
  3. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture. Details
  4. Irms: Current that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

종단 처리:

  • RoHS tin-silver (96.5/3.5) over copper.
환경
환경:
RoHS 준수
주변 온도 범위:
−40°C to +85°C with Irms current
보관 온도 범위:
Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C
최고 부품 온도:
+125°C (Ambient + temperature rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

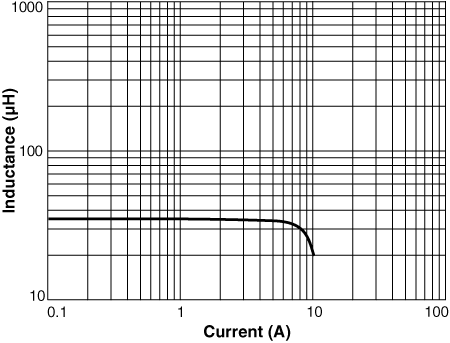

Inductance vs. Current

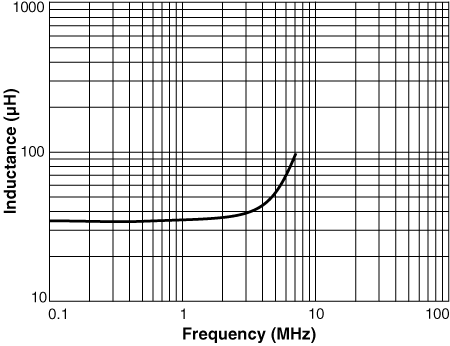

Inductance vs. Frequency

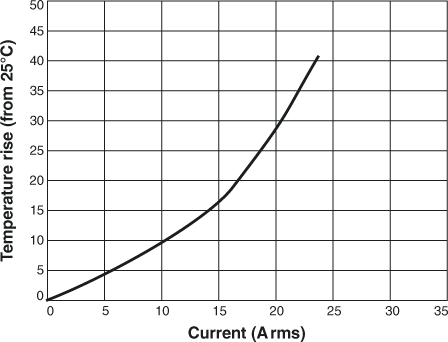

Temperature Rise vs. Current

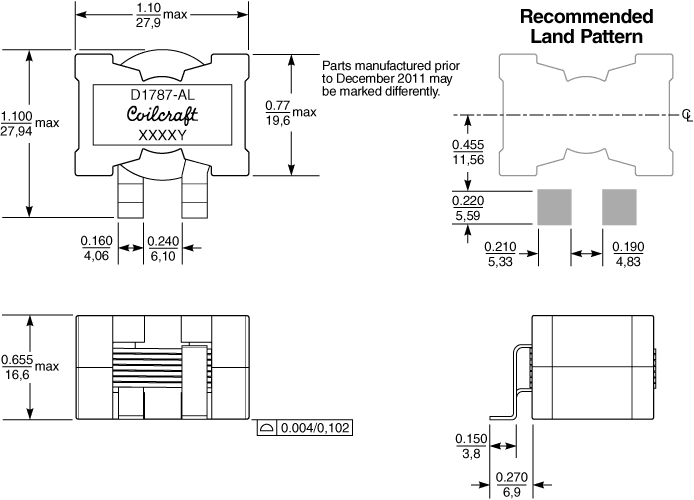

물리적 특성


일반 사양

코어 소재:
Ferrite
중량:
34.9 g
패키지:
25 parts per tray

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
