CU8838-AL

High Current Shielded Power Inductor

RoHS 준수
Coilcraft's CU8838-AL power inductor is mechanically rugged and magnetically shielded for use in high-density circuits. Flat-wire construction provides excellent current handling and exceptionally low DCR, and soft saturation makes them perfect for VRM/VRD applications.
  • Exceptionally low DC resistance
  • Soft saturation for high peak current handling
  • Magnetic shielding for high-density packaging
  • Ideal for low-voltage, high-current DC-DC converters and VRD/VRM controllers
  • No thermal aging
지금 구매:
개수 단품 가격
1 $1.49
800 $1.28
1600 $1.00
2400 $0.85
5600 $0.79

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 1 인덕턴스 (µH) 2
(허용 오차: ±20%)
DCR (mΩ) 3 SRF typ (MHz) 4 Isat (A) 5 Irms (A) 6
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
CU8838-AL_ 1.0 1.75 2 100 27.0 45.0 63.0 18.5 26.0
메모
  1. When ordering, please specify packaging code: e.g. CU8838-ALD
  2. Inductance tested at 100 kHz, 0.1 Vrms using a Coilcraft SMD-A fixture and an Agilent/HP 4284A LCR meter.
  3. DCR measured at 25°C. For other operating temperatures, use this DCR at Temperature calculator
  4. SRF measured using an Agilent/HP4291A impedance analyzer or equivalent and a Coilcraft16193 fixture.
  5. Isat: DC current at which the inductance drops the specified amount from its value without current. Details
  6. Irms: Current that causes specified temperature rise from 25°C ambient. Details

종단 처리:

  • RoHS tin-silver over copper.

패키지:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (500 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
환경
환경:
RoHS 준수
주변 온도 범위:
−40°C to +85°C with (40°C) Irms current.
보관 온도 범위:
Component: −40°C to +125°C
Tape and reel packaging: −40°C to +80°C
최고 부품 온도:
The part may be operated without damage as long its temperature (ambient + self-heating) does not exceed +125°C
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

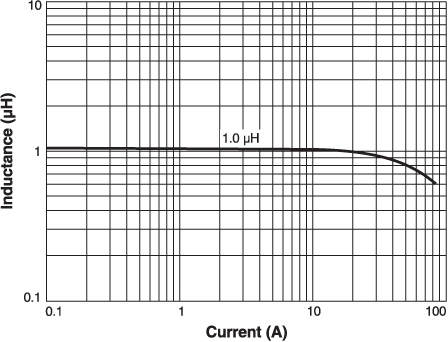

Inductance vs. Current

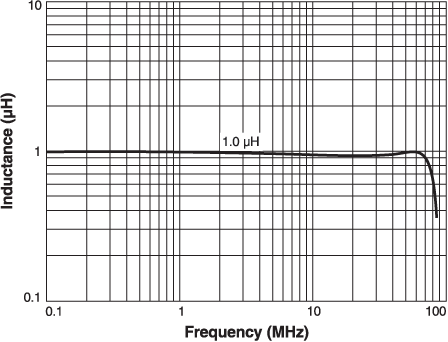

Inductance vs. Frequency

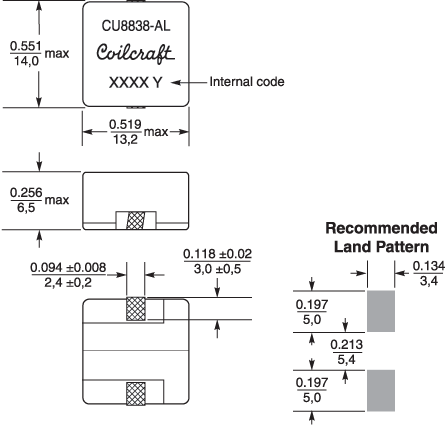

물리적 특성


테이프 및 릴 사양




Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_aa.gif
500 330 100 13 30,4 24,4 24 20 4 2 6,5 0,4

일반 사양

코어 소재:
Iron
중량:
4.9 g
패키지:
500/13″ reel Plastic tape: 24 mm wide, 0.4 mm thick, 20 mm pocket spacing, 6.5 mm pocket depth

납땜/세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
납땜 열 내성:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles
납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
