VER2923 Series

Shielded High Current Power Inductors

RoHS 준수

VER2923 Series power inductor, along with HA3588, is designed for high-efficiency power supplies requiring high current and high inductance.

  • Flat wire windings provide extremely low DC and AC resistance.
  • Low loss ferrite cores provide flat L vs I
  • Magnetic shielding to minimize EMI
  • Through-hole (TH) mounting for rugged board attachment
AGP2923 provides the same electrical performance, features AEC-Q200 Grade 1 qualifications, and has additional mounting pins to ensure more secure mounting.
지금 구매:
개수 단품 가격
1 $4.92
250 $4.22
500 $3.66
1000 $3.19
2500 $2.73
5000 $2.51

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

. 재고 보유 중, 당일 발송 가능.
샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 인덕턴스 (µH) 1
(허용 오차: ±10%)
DCR (mΩ) 2 SRF typ (MHz) 3 Isat (A) 4 Irms (A) 5
typ max 10% drop 20% drop 30% drop 20°C rise 40°C rise
VER2923-332KL 3.3 2.3 2.6 40.0 95.0 104 108 19 26
VER2923-472KL 4.7 2.3 2.6 30.0 63.0 69.0 72.0 19 26
VER2923-682KL 6.8 2.3 2.6 25.0 48.0 53.0 56.0 19 26
VER2923-103KL 10 2.3 2.6 20.0 30.0 34.0 37.0 19 26
VER2923-153KL 15 2.3 2.6 16.0 20.5 23.0 24.5 19 26
VER2923-223KL 22 2.3 2.6 13.0 12.2 14.7 16.4 19 26
VER2923-333KL 33 2.3 2.6 10.0 7.5 9.2 10.3 19 26
메모
  1. Inductance measured at 300 kHz, 0.1 Vrms, using an Agilent/HP 4192A LCR meter or equivalent.
  2. DCR measured at 25°C on a Keithley 580 micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator.
  3. SRF measured using an Agilent/HP 8753ES network analyzer. Details
  4. Isat: DC current at 25°C that causes the specified inductance drop from its value without current. Temperature derating curves.
  5. Irms: Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings. Temperature derating curves.

종단 처리:

  • RoHS compliant tin-silver over copper. Other terminations available at additional cost.
환경
환경:
RoHS 준수
주변 온도 범위:
−40°C to +85°C with Irms current.
보관 온도 범위:
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
최고 부품 온도:
+125°C (ambient + temp rise)
고장 비율(FIT) / 평균 고장률(MTBF):

성능 곡선

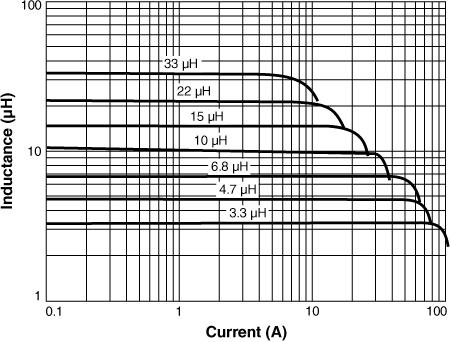

Inductance vs Current

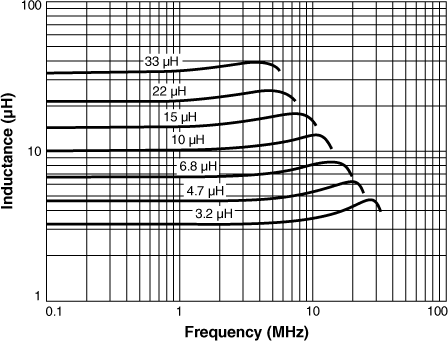

Inductance vs Frequency

물리적 특성



일반 사양

코어 소재:
Ferrite
중량:
37 g
패키지:
25 parts per tray

세척

수분 민감도(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
PCB 세척:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info
