1210ETH-204

Name: 1210ETH-204NRC
Brand: Coilcraft
SKU: 1210ETH-204NRC
Price: 0.79 USD
Availability: InStock

1210ETH-204NRC

부품에 대한 추가 정보 및 사양.

시리즈로 이동

지금 구매:

개수	단품 가격
1	$1.26
100	$1.02
250	$0.96
500	$0.91
1000	$0.79

대량 또는 비재고 품목의 경우, 견적서를 요청하십시오.

Tolerance

N = 30%

Termination

R = Matte tin over nickel over silver-palladium-glass frit

Packaging

C = 7" machine-ready reel

. 재고 보유 중, 당일 발송 가능.

샘플 신청:

사양

Electrical specifications at 25°C.

부품 번호 1	라인	인덕턴스 (µH) 2 (허용 오차: ±30%)	Irms (mA)		DCR max (Ω) 4	절연 전압 (Vrms) 5
부품 번호 1	라인	인덕턴스 (µH) 2 (허용 오차: ±30%)	at 25°C 3	at 125°C	DCR max (Ω) 4	절연 전압 (Vrms) 5
1210ETH-204NRC	2	200	80	70	4.25	250

메모

When ordering, please specify termination and packaging codes: e.g. 1210ETH-244NRC
Inductance is per winding, measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/ HP 4263B LCR meter and a Coilcraft CCF 1190 fixture.
25°C rise: Equal current when applied to each winding simultaneously that causes a 15°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.

125°C rise: Equal current when applied to each winding simultaneously that causes a 15°C temperature rise from 125°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is specified per winding, measured on a Keithley 580 microohmmeter and a Coilcraft CCF 888 fixture. For other operating temperatures, use this DCR at Temperature calculator.
Winding to winding isolation (hipot) tested for one minute.

종단 처리:

R = RoHS compliant matte tin over nickel over silver palladium-glass frit
Q = RoHS tin-silver-copper (95.5/4.0/0.5)
P = non-RoHS tin-lead (63/37)

패키지:

C = 7" machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13" machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3000 parts per full reel).

환경

환경:

RoHS 준수 , 할로겐 프리

주변 온도 범위:

–40°C to +125°C with Irms current

보관 온도 범위:

–40°C to +140°C (-204)/+125°C (-244)
Tape and reel packaging: –40°C to +80°C

최고 부품 온도:

+140°C (-204)/+125°C (-244) (ambient + temp rise)

고장 비율(FIT) / 평균 고장률(MTBF):

See FIT/MTBF Calculations

성능 곡선

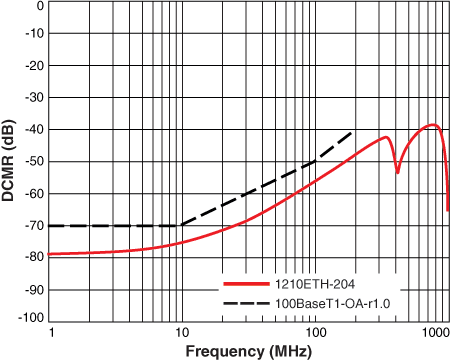

Differential to Common Mode Rejection

Common Mode Rejection

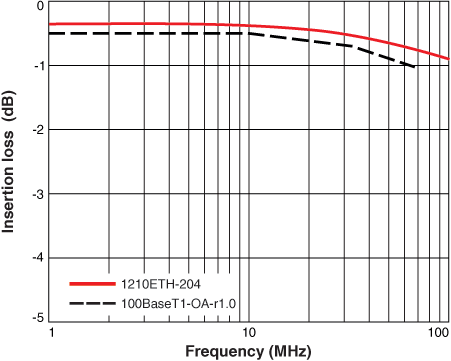

Insertion Loss

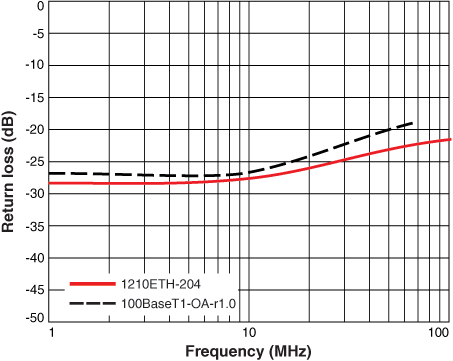

Return Loss

회로도

물리적 특성

A max	B max	C max	D	E	F	G	H	I
0.133	0.106	0.098	0.042	0.021	0.058	0.041	0.112	0.068	inches
3,38	2,7	2,5	1,07	0,53	1,473	1,041	2,845	1,727	mm

테이프 및 릴 사양

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
750	3000*	178/330	60/100	13	18,4	12,4	12	8	4	2	2,72	0,25

* Special order

일반 사양

코어 소재:

Ferrite

중량:

38 mg

패키지:

Packaging 750/7″ reel; 3000/13″ reel; Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 2.72 mm pocket depth.

납땜/세척

수분 민감도(MSL):

1 (unlimited floor life at <30°C / 85% relative humidity)

납땜 열 내성:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

납땜 전에 Coilcraft 부품의 납땜을 참조하십시오.

PCB 세척:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
