PA6512-AE

Z Axis RFID Coil

符合RoHS
The PA6512-AE z-axis coil is optimized for 13.56 MHz NFC/RFID tag applications and requires 85% less board space compared to antennas designed for a PCB, yet still has 50% of the read distance.
  • Optimized for use for the Z axis in Near Field Communications systems.
  • Evaluation was done using the STMicroelectronics CR95HF NFC Transceiver Reference boardwith the PA6512 connected to the STMicroelectronics M24LRxxE Dynamic NFC/RFID Tag.
  • Requires 85% less board space (123 mm2 vs 800 mm2) compared with antennas designed for a PCB yet still has approximately 50% of the read distance.

立即购买:

很抱歉,目前我们的网上商店不提供所选元件。

请点击“请求报价”联系支持部门,以获取自定义报价或了解更多信息。

. 现货,可今天发货.
索取样品:

规格

Electrical specifications at 25°C.

零件号 1 电感 (µH)
at 100 kHz 2
(公差: ±20%)
读取距离
(inch/cm) 3
DCR max (Ω) 4 电感 at
13.56 MHz (µH)
PA6512-AE_ 4.7 1.15 / 2.93 0.028 4.6
注释
  1. When ordering, please specify packaging code: e.g. PA6512-AED
  2. Inductance measured at 100 kHz using Agilent/HP 4284A impedance analyzer or equivalent.
  3. Read distance measured using the ST Microelectronics CR95HF RF transceiver demo board.
  4. DCR measured at 25°C on a micro-ohmmeter using a Keithley 580 micro-ohmmeter or equivalent. For other operating temperatures, use this DCR at Temperature calculator

端子:

  • Tin over nickel over phos bronze

包装:

  • D = 13″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
  • B = Less than full reel. In an effort to simplify our part numbering system, Coilcraft is eliminating the need for multiple packaging codes. When ordering, simply change the last letter of your part number from B to D.
环境
环境:
符合RoHS
环境温度范围:
−40°C to +85°C
储存温度范围:
Component: −40°C to +85°C
Tape and reel packaging: −40°C to +80°C
故障率(FIT)/平均故障间隔时间(MTBF):

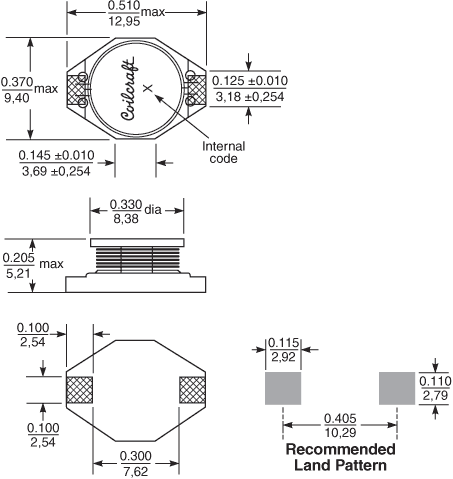

物理特性


卷装规格

Parts per reel Reel dimensions (mm) Tape dimensions (mm) Orientation
13" (330 mm) A B C D E W P Po P1 H T part_or_t.gif
1000 330 100 13 30,4 24,4 24 12 4 2 5,8 0,33

一般规格

核心材料:
Ferrite
重量:
1.1 g
包装:
1000 per 13″ reel Plastic tape: 24 mm wide, 0.33 mm thick, 12 mm pocket spacing, 5.8 mm pocket depth

焊接/清洗

湿气敏感度等级(MSL):
1 (unlimited floor life at <30°C / 85% relative humidity)
抗焊接热:
Three reflows at >217°C for 90 seconds (+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room temperature between.
焊接之前,请参阅焊接线艺元件
PCB清洗:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
