1210CAN Series

Common Mode Choke

Our 1210CAN Series filters a broad frequency range of common mode noise with 50% lower DCR and higher current handling than other CANbus chokes in the market. They are designed for common mode noise suppression on CAN or CAN FD lines in automotive or general industrial automation applications, and can also be used for FlexRay automotive bus systems.

Designed for common mode noise suppression on CAN or CAN FD in automotive or general industrial automation applications
51μH value meets IEC 6228-3 (CDV Annex D) requirements
Can be used for FlexRay automotive bus system
Filters a broad frequency range of common mode noise
Low profile 1210 footprint: 3.30 × 2.67 × 3.0 mm
AEC-Q200 Grade 1 (−40°C to +125°C)

立即购买:

零件号

查找我的元件

计数	单价
1	$1.20
100	$1.10
250	$0.99
500	$0.89
1000	$0.78
2500	$0.68
5000	$0.58

对于大批量采购或非库存产品，点击这里请求报价。

Termination

R = Matte tin over nickel over silver-palladium-glass frit

Packaging

C = 7" machine-ready reel

Tolerance

N = 30%

. 现货，可今天发货.

索取样品:

零件号

查找我的元件

规格

Electrical specifications at 25°C.

零件号 1	线组数	电感 (µH) 2 (公差: ±30%)	Irms (mA) 3	DCR max (Ω) 4	隔离电压 (Vrms) 5
零件号 1	线组数	电感 (µH) 2 (公差: ±30%)	Irms (mA) 3	DCR max (Ω) 4	隔离电压 (Vrms) 5
1210CAN-113NR_	2	11	300	0.45	250
1210CAN-223NR_	2	22	300	0.60	250
1210CAN-513NR_	2	51	200	1.35	250
1210CAN-104NR_	2	100	100	3.70	250

注释

When ordering, please specify packaging code: e.g. 1210CAN-104NRC
Inductance is per winding, measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/ HP 4263B LCR meter and a Coilcraft CCF 1190 fixture.
Equal current when applied to each winding simultaneously that causes a 25°C temperature rise from 125°C ambient. This information is for reference only and does not represent absolute maximum ratings.
DCR is specified per winding, measured 25°C on a Keithley 580 micro-ohmmeter and a Coilcraft CCF 858 fixture. For other operating temperatures, use this DCR at Temperature calculator.
Winding to winding isolation (hipot) tested for one minute.

端子:

RoHS compliant matte tin over nickel over silver palladium-glass frit.

包装:

C = 7" machine-ready reel. EIA-481 embossed plastic tape (750 parts per full reel). Quantities less than full reel available: in tape (not machine ready) or with leader and trailer ($25 charge).
D = 13" machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3000 parts per full reel).

环境

环境:

符合RoHS , 无卤素

环境温度范围:

–40°C to +125°C with Irms current

储存温度范围:

Component: –40°C to +150°C.
Tape and reel packaging: –40°C to +80°C

最高元件温度:

+150°C

故障率（FIT）/平均故障间隔时间（MTBF）:

See FIT/MTBF Calculations

性能曲线

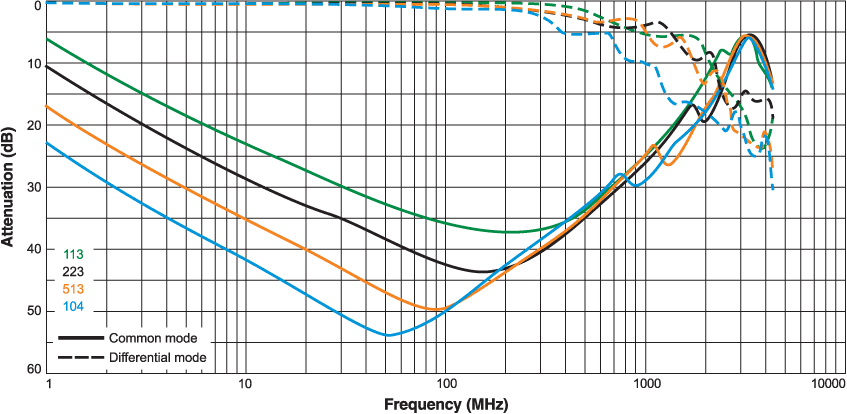

Attenuation

Impedance vs Frequency

物理特性

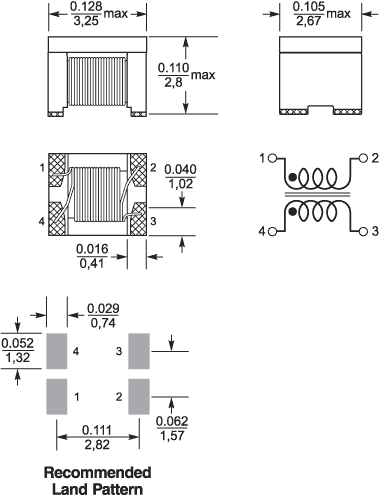

卷装规格

Parts per reel		Reel dimensions (mm)					Tape dimensions (mm)						Orientation
7" (178 mm)	13" (330 mm)	A	B	C	D	E	W	P	Po	P1	H	T
750	3000*	178/330	60/100	13	18,4	12,4	12	8	4	2	2,72	0,25

* Special order

一般规格

核心材料:

Ferrite

重量:

100 – 120 mg

焊接/清洗

湿气敏感度等级（MSL）:

1 (unlimited floor life at <30°C / 85% relative humidity)

抗焊接热:

Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles

焊接之前，请参阅焊接线艺元件。

PCB清洗:

Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. More info.
